SVF30 with Look&Wave technology.
The reliable Schaefer cubicles system Type SVF30 made of melamine resin coated solid chipboard with colored ABS lipping and contactless door opening. The alternative, if besides pure function also design and above all a maximum of hygiene is required! Quick cleaning of the walls, effective edge protection and a particularly attractive appearance are convincing arguments for this type of partition.
Product characteristics and application of SVF30 Look&Wave:
- Construction made of 30 mm melamine resin-coated solid chipboard
- ABS edging in the same color as the surface of the panel
- Wall connections by means of shadow gaps are optionally possible
- Suitable for dry rooms
- Flush front elements on the outside of the sanitary partition wall
- Only the LED sensor is placed on the plate surface
- Particularly easy to clean, easy-care and robust
- Contactless door opening reduces germ transmission to a minimum
- Wide range of decors and colors available
- System will be produced acc. to the building site dimension
- Made in Germany
- Type-tested and certified by TÜV NORD, Registration No. 44 780 14148802
- Tested and certified by TÜV NORD: Conformity with the following European directives: Machinery Directive 2006/42/EC, Registration No. 44 789 14148801

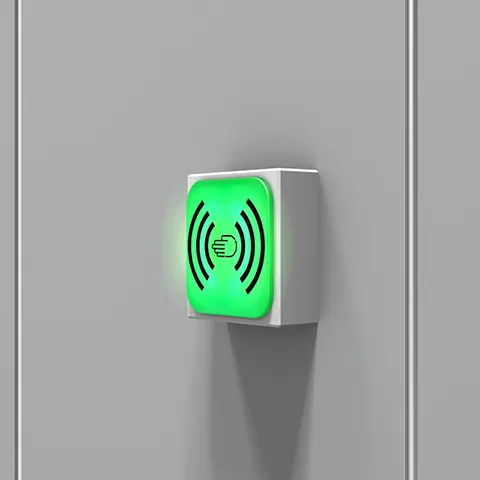

Attached sensor inside and outside
The energy-saving LED sensor is mounted on the front wall elements.
Cable routing by means of cable rail inside
The cables for the power supply and control elements run in a cable guide rail in the room-high WC partition SVF30. This is visibly located on the inside of the WC partition wall.
Visible hinges
Depending on the door height, the door is guided by two or three stainless steel hinges. The hinges are fitted in the rebate. The connection of the door with the drive in the top profile is made by an aluminium connection in the upper part of the door.
Other partition systems with Look&Wave technology:
Room-high partition system EF-3 ALTUS
with Look&Wave technology
The floor-to-ceiling WC partition
EF-3 ALTUS can be manufactured
up to a height of 2.80 m
Partition system EF-3
with Look&Wave technology
A wide range of colors and individual
motif prints offer scope for countless
design options.
Frequently asked questions about type SVF30 Look&Wave
Power for our Look&Wave touchless sanitary cubicles is supplied on-site via a fused 230-volt power line with a surface-mounted outlet, and the installation is straightforward. The cable runs through the top profile at the front. The cable runs from the top profile to the respective sensors inside the unit.
The Look&Wave touchless toilet partition are virtually maintenance-free. It is possible to enter into a maintenance contract. This includes maintenance of the system at specified intervals by qualified service technicians. Sensitive components are replaced as a preventive measure and their function is checked to ensure that the system maintains its high quality over the long term.
